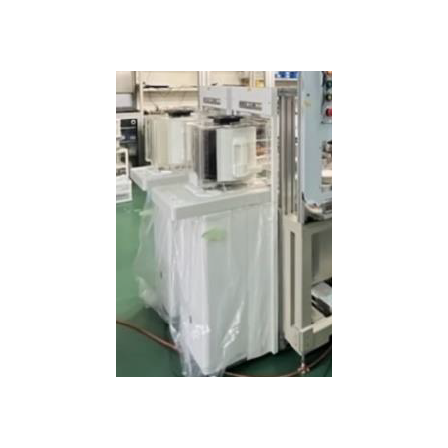

Fully automatic 12-inch compatible profiler 'WEIM-12F'
Achieving high-precision and high-speed automatic measurement! Fully automatic profiler and composite inspection machine compatible with inline management.
The "WEIM-12F" is a fully automatic profiler inspection machine compatible with FUPE, capable of high-precision and high-speed automatic measurements. It retrieves wafers using a robot with a double-hand inversion mechanism, aligns them, and then measures wafer thickness, diameter, notch, and profiler measurements before storing them. It is a system that allows inline management via MELCEC-net communication. 【Features】 ■ High-precision, high-speed automatic measurements ■ Two laser displacement meters measure the thickness at the center and outer edge of the wafer ■ Two width and diameter measurement devices measure the outer diameter of the wafer using the diameter method ■ Two optical cameras measure the notch and notch displacement of glass/Si from both sides *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■Repeatability: ±1μm ■Angle: 0.1° ■Cycle time: 50 seconds per sheet ■Profiler measurement items: Thickness T, chamfer width, height, R shape, trimming width/length, bonding thickness/offset ■Standards compliance: ISO1705 compliant ■Standard accessories: Calibration wafer included *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Target】 ■Si wafer ■Glass wafer ■Glass-Si bonding *For more details, please download the PDF or feel free to contact us.
