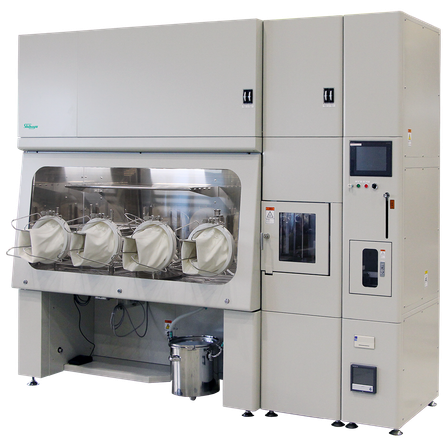

Sterility testing isolator
Certainty in testing starts with reliability. For proven performance, choose Shibuya.
Combine 3- to 5-glove operation modules, passbox modules, and HYDEC (hydrogen peroxide vapor generator) modules to create a sterile testing environment perfectly tailored to your needs! We offer a variety of options to meet your specific requirements, including features designed to reduce decontamination time, selectable airflow speed options, and a wide range of glove variations.
basic information
Internal Cleanliness of Isolator: ISO Class 5 Required Utilities: 200 V power supply only (separate 100 V power supply required for the interior) *Compressed air may be required depending on the decontamination type Decontamination Level: 6 LRV Leak Rate: 1.0 Vol/hr or less (measured at an initial pressure of approximately 100 Pa) Operating Pressure: +60 Pa
Price information
This varies depending on the specifications. Please feel free to contact us.
Price range
P7
Delivery Time
OTHER
Although this varies depending on the time of year, the lead time from order placement to shipment is typically 10 to 12 months.
Model number/Brand name
Type PPLF
Applications/Examples of results

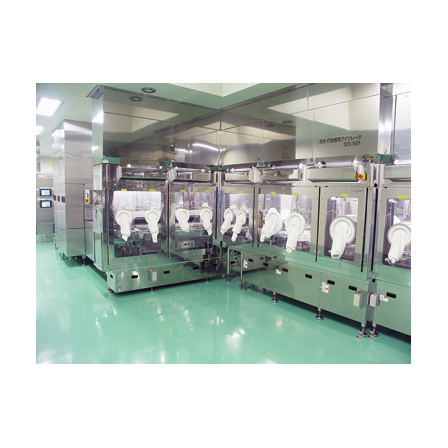

We have a track record of delivering more than 100 isolators specifically for sterility testing to pharmaceutical companies and testing laboratories both in Japan and overseas. Including isolators for manufacturing lines, containment (hazard) isolators, and isolators for regenerative medicine, we have a track record of delivering more than 400 to 500 units. Thanks to the high reliability derived from the technical expertise cultivated through our extensive experience, our products are highly regarded for their low failure rate and high operational stability.
Line up（2）
| Model number | overview |
|---|---|
| Isolator Unit + HYDEC (Hydrogen Peroxide Vapor Generator) | The number of gloves for the isolator unit can be selected from 3, 4, or 5. |
| Isolator Unit + Bath Box Module + HYDEC (Hydrogen Peroxide Vapor Generator) | The number of gloves for the isolator unit can be selected from 3, 4, or 5. |
