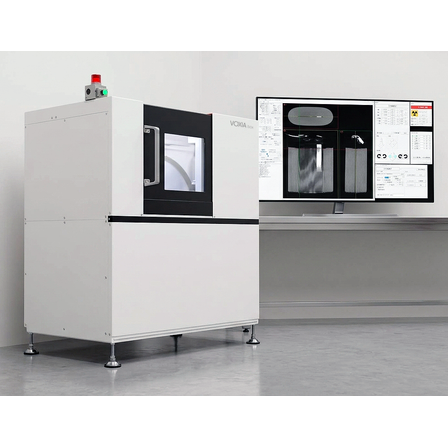

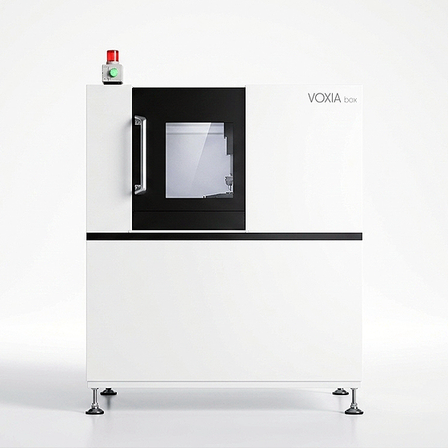

Voxia Box X-ray CT imaging device
□◼️X-ray CT imaging device (medium) ◼️□ Voxia series medium size 6-axis CT imaging axis configuration Custom design available to suit applications
Compact design with a space-saving layout that can be installed anywhere. Despite its compact body, it generates high-resolution data through advanced calculation software. ◉ VCap (Data Acquisition Program): A custom-made shooting stage tailored to the subject and purpose. ◉ VCT (CT Image Calculation Program): Customizable automatic measurement and analysis software specialized for the specified subject. ◉ MolcerPlus (3D Display Analysis): Custom software that enables measurement conditions that were previously difficult with other software. ● High safety, ● Compatible with a wide variety of samples, ● Intuitive HMI, easy operation.
basic information
The Voxia series is custom-made. The specifications of the Voxia box below are merely reference configuration examples. - X-ray tube voltage: 20-90kV - Focus size: 7um or 5um - Detector: 3.2 million pixels - Detection area: 159 x 159mm - 6-axis stage - Maximum sample size: Φ120mm - Maximum sample weight: 1kg
Price range
Delivery Time
Model number/Brand name
Voxia Box
Applications/Examples of results

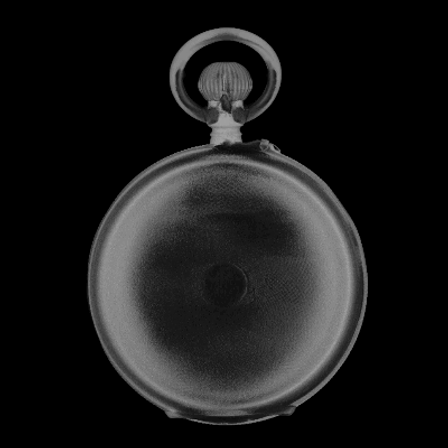

- Medical pharmaceuticals (tablets, etc.) - Industrial products (machines, electronic components, etc.) - Food - Cultural properties, fossil research, etc.
catalog（7）
Download All Catalogs
News about this product（4）
-
The catalog for the MiniLab Flexible Thin Film Experimental Device has been renewed!
We have completely renewed the catalog for the MiniLab series thin film experimental equipment. 【Features of the MiniLab Series】 ◉ Supports sputtering, evaporation (resistive heating, organic, EB), annealing, plasma etching, etc. ◉ Modular design allows for flexible combinations of components (source hybrid types and multi-chamber configurations are possible) ◉ Compact, space-saving design (width 1,200 x depth 560 mm) ◉ Excellent operability: intuitive interface allows for centralized management of all operations via a touch panel without dispersion. We are confident that this will be of great assistance in research and development settings. Please consider it.
-
★☆★☆ MiniLab Series Flexible Thin Film Experimental Device ★☆★☆
The MiniLab thin film experimental device allows for the construction of a compact, semi-customized system that eliminates waste by incorporating the optimal components and control modules according to the required film formation methods and materials from a wide range of options. By equipping a modular control unit with a Plug & Play feel, the application range expands, enabling various thin film process experiments. 【MiniLab Thin Film Experimental Device Configuration Modules】 ◎ Manufacturing Range Resistance heating deposition (TE), organic deposition (LTE), electron beam deposition (EB), sputtering (SP), CVD, dry etching 【Small Footprint & Space Saving】 - Single rack type (026): 590(W) x 590(D)mm - Dual rack type (060): 1200(W) x 590(D)mm - Triple rack type (125): 1770(W) x 755(D)mm 【Excellent Operability & Intuitive Operation Screen】 Windows PC or 7” touch panel. Easy operation that does not require advanced skills, with maximum consideration for safety. All operations except for internal component adjustments and material exchanges in the chamber are performed via the PC/HMI screen.
-
Wafer Annealing Equipment [ANNEAL] Max 1000℃ APC Automatic Pressure Control MFC x3 System Compatible with Φ4 to 6 inch Substrates
Max 1000℃, MFC up to 3 systems, APC pressure control, compatible with substrates from 4" to a maximum of 6", high vacuum annealing device (<5 × 10-7 mbar) [ANNEAL] is a research and development annealing device capable of high-temperature heat treatment of substrates such as wafers in a stable process atmosphere. It allows high-temperature processing up to 1000℃ using a heating stage installed in a high vacuum water-cooled SUS chamber. A heat shield is installed inside the chamber to ensure safety through interlock. The mass flow controller can be expanded to a maximum of 3 systems, enabling firing operations with precisely adjusted process gas pressure (APC automatic process control system option). Additionally, there are many options available, including a front view port, dry scroll pump, special substrate holder, and additional thermocouples. The heating stage inside the chamber has three variations depending on the process gas atmosphere and treatment temperature: - Halogen lamp heater: Max 500℃ - C/C composite heater: Max 1000℃ (in vacuum, inert gas only) - SiC coating heater: Max 1000℃ (vacuum, inert gas, O2)
-
☆★☆★【nanoCVD-WGP】Wafer-scale graphene/carbon nanotube synthesis device ☆★☆★
Plasma CVD equipment compatible with wafer sizes Φ3 inch and Φ4 inch. Rapid synthesis of clean, high-quality graphene while suppressing impurities. Usable with both thermal CVD and low to high temperature plasma CVD methods. The configuration can be customized according to requirements, including mass flow gas supply systems and substrate heating heaters. 【Example of equipment configuration】 - Substrate: Cu, Ni, etc. (film, foil) - Raw materials: CH4, C2H4, solids (PMMA), etc. - Process gases: H2, Ar, N2, etc. - Substrate size: Φ4 inch - 150W, 13.56MHz RF power supply - Substrate heating from 500℃ to Max 1100℃ - High precision process gas pressure APC control - Mass flow controller with a maximum of 4 channels
